Support MP3, WAV, WMA format
Support lyrics display.
Supports power-off memory tracks, volume, repeat status, EQ status, and system settings.

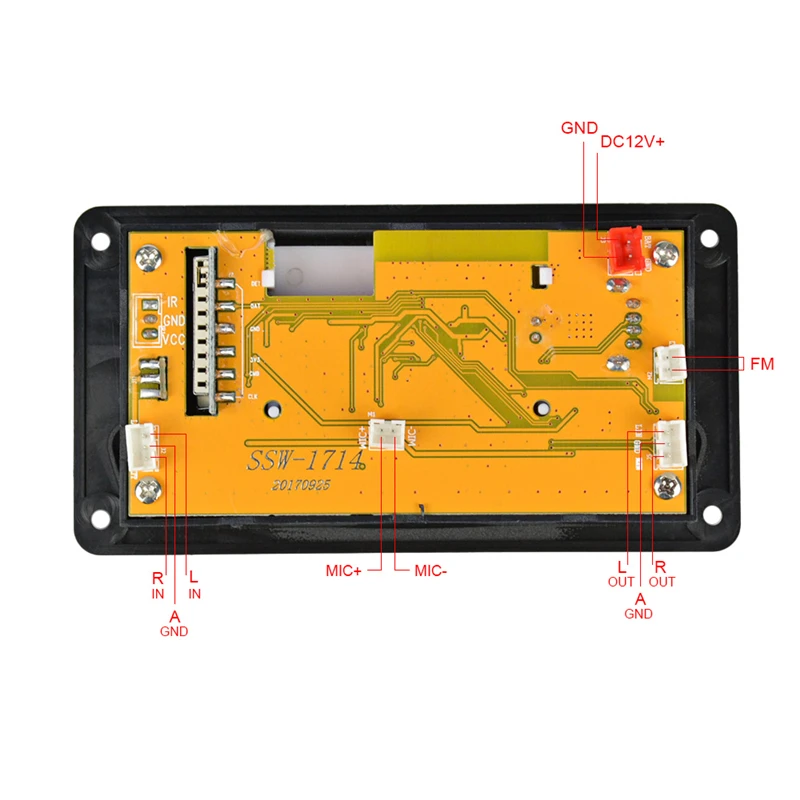

Power Supply: DC12V
1. Turn on the power No device display shows welcome words
2. No device enters Bluetooth mode
1, plug in the USB, when reading "USB" device, then "USB" device automatically enters the play. Or press the mode key to enter the main menu and press the up and down keys to select the music mode. Press the play button to enter the play mode.
When there is no lyrics, there are playing time/total time/song name (scroll from right to left)/spectrum display, and when there are lyrics, the following three lines display lyrics (automatic recognition in Chinese and English). The display is as follows:
Note: When the bit rate is 1000kbps, it is displayed as 999
2, in the "USB" state, short press the panel or remote "play / pause" button to enter the pause state, the system automatically mutes. The display shows pause, playing time does not move.
4, in the "USB" state, press the "0-9" number key on the remote control, you can directly select the tracks in the "USB", if you choose the first 5, press the remote control's number key 5; if you choose 25, Directly press the remote control's numeric keys 2, 5; if you select 215, press the remote control's numeric keys 2, 1, 5 directly.
5, in the "USB" state, short press the panel or remote control repeat button, short press to enter 1 (single cycle) → FOLDER (current folder) → NORMAL (normal is also the order of play) → RANDOM (random play) → INT (Browse play) → ALL (all cycles), the display shows the following:
Duplicate current folder
Browse Play (plays only the first 10 seconds of each song)
6, in the "USB" state, short press the "EQ" button on the remote control, enter the sound field mode, select in order: NORMAL (normal) → POP (pop) → ROCK (rock) → JAZZ (jazz) → CLASSIC (classical) → COUNTRY (countryside) → BASS (bass), the display shows the first three letters of the sound field pattern as follows:
7, in the "USB" state, short-click on the panel or remote control "previous" and "Next" button, you can select music and can loop selection (such as the first time you press the last song to the last one ),
8, in the "USB" state, short press the panel "FD-" and "FD +" button to select the previous folder and the next folder to play.
9, in the "USB" state, press the remote "stop" button to stop playing,
With the USB operating instructions, but the U disk marked display changed to SD card.

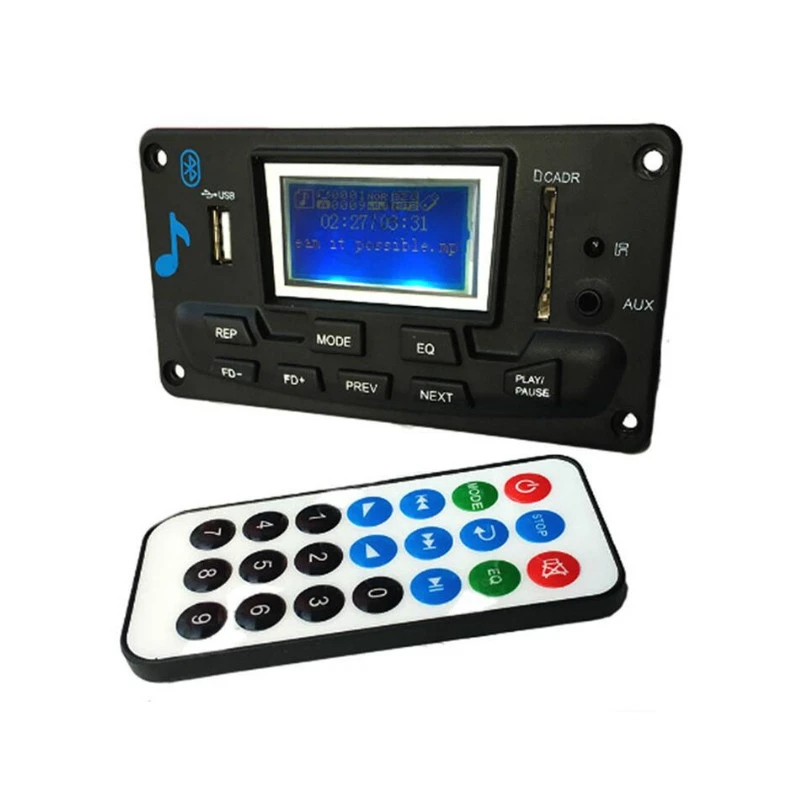

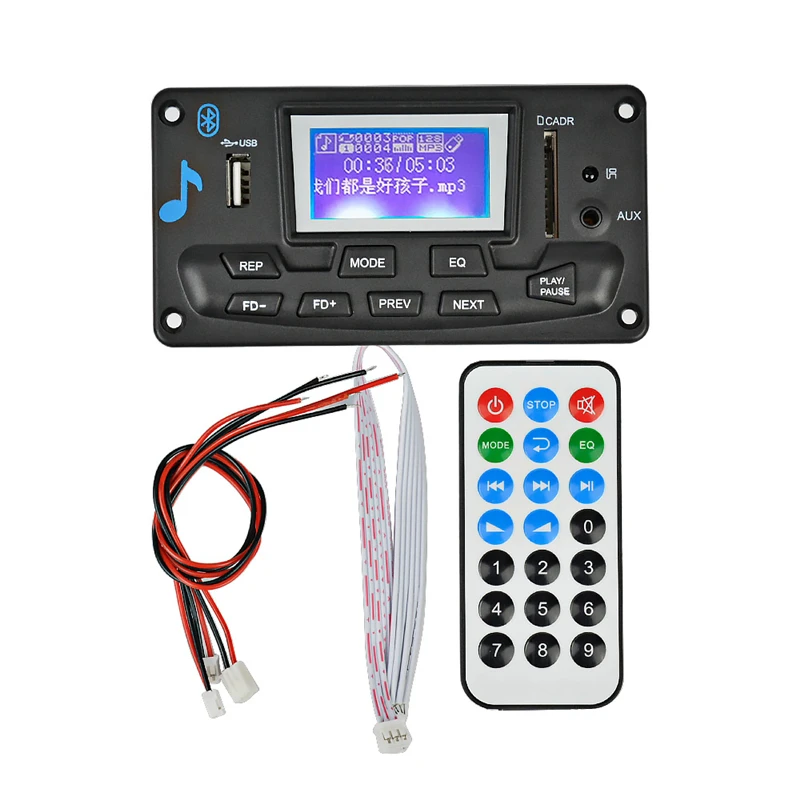

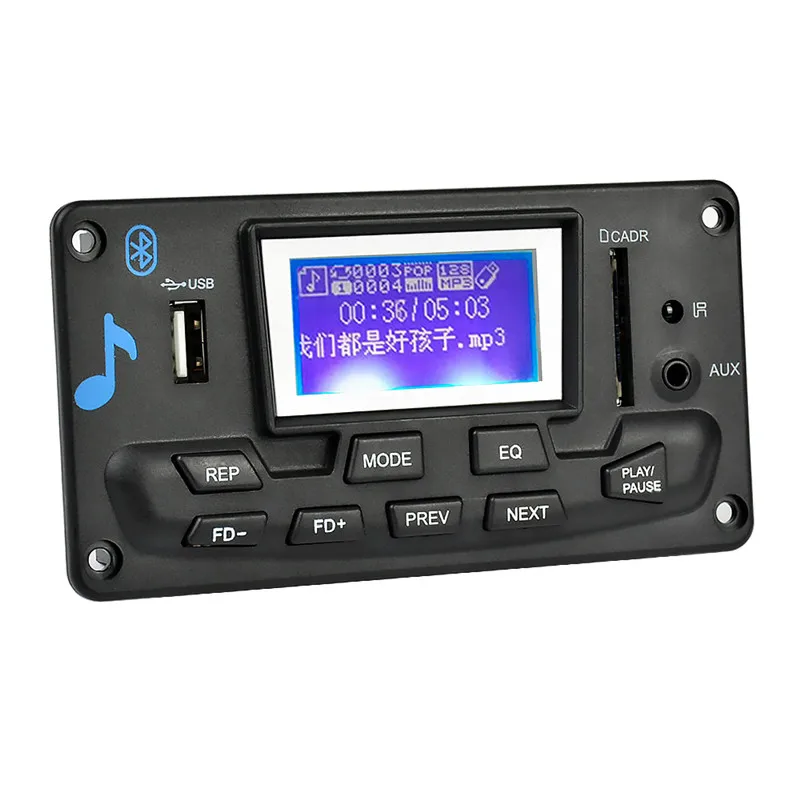

1PC MP3 decoder board

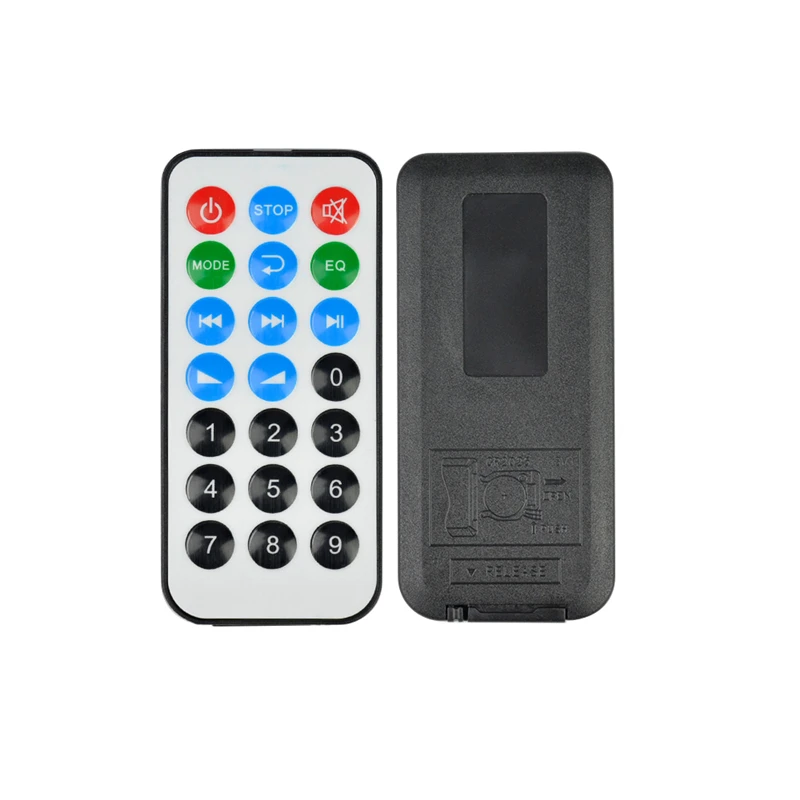

1PC remote control
